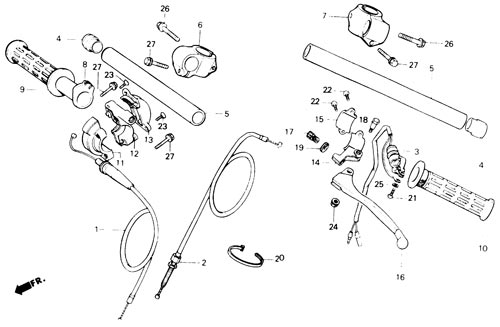

F-1 STEERING HANDLE CABLE
|
|
F-1 STEERING HANDLE CABLE
|
| NO |
Part No |
Description |
Reqd No |
PRICE |
NOTES |
| 93 |
94 |
| 1 |
17910-NF4-780 |
CABLE COMP THROTTLE |
1 |
1 |
¥1,140 |
- |
| 2 |
22870-NF4-000 |
CABLE COMP CLUTCH |
1 |
1 |
¥1,230 |
- |
| 3 |
35130-NF4-000 |
SWITCH ASSY ENGINE STOP |
1 |
1 |
¥1,250 |
- |
| 4 |
53105-NF4-770 |
CAP HANDLE PIPE |
2 |
2 |
¥340 |
- |
| 5 |
53111-NF4-770 |
PIPE HANDLE |
2 |
2 |
¥2,180 |
- |
| 6 |
53112-NF4-770 |
HOLDER R HANDLE |
1 |
1 |
¥8,220 |
- |
| 7 |
53122-NF4-770 |
HOLDER L HANDLE |
1 |
1 |
¥8,220 |
- |
| 8 |
53141-NF4-003 |
PIPE THROTTLE GRIP |
1 |
1 |
¥1,300 |
- |
| 9 |
53165-422-000 |
GRIP R HANDLE |
1 |
1 |
¥580 |
- |
| 10 |
53166-422-000 |
GRIP L HANDLE |
1 |
1 |
¥580 |
- |
| 11 |
53167-KS6-000 |
HOUSING A GRIP |
1 |
1 |
¥1,000 |
- |
| 12 |
53168-KS6-000 |
HOUSING B GRIP |
1 |
1 |
¥1,000 |
- |
| 13 |
53169-ML3-790 |
COVER HOUSING B |
1 |
1 |
¥400 |
- |
| 14 |
53172-430-003 |
BRACKET L HANDLE LEVER |
1 |
1 |
¥2,050 |
- |
| 15 |
53173-376-000 |
HOLDER LEVER BRACKET |
1 |
1 |
¥600 |
- |
| 16 |
53178-399-700 |
LEVER L STEERING HANDLE |
1 |
1 |
¥1,250 |
- |
| 17 |
53192-KA3-700 |
BOLT WIRE ADJUST |
1 |
1 |
¥380 |
- |
| 18 |
90114-310-000 |
BOLT HANDLE LEVER PIVOT |
1 |
1 |
¥250 |
- |
| 19 |
90321-KF0-000 |
NUT FIXING |
1 |
1 |
¥390 |
- |
| 20 |
90651-NC8-000 |
TY-LAP 3.6*281 |
1 |
1 |
¥110 |
- |
| 21 |
93500-04012-1A |
SCREW PAN 4*12 |
1 |
1 |
¥25 |
- |
| 22 |
93500-05016-0A |
SCREW PAN 5*16 |
2 |
2 |
¥25 |
- |
| 23 |
93700-04010-0G |
SCREW OVAL 4*10 |
2 |
2 |
¥25 |
- |
| 24 |
94050-06000 |
NUT FLANGE 6mm |
1 |
1 |
¥35 |
- |
| 25 |
94111-04000 |
WASHER SPRING 4mm |
1 |
1 |
¥25 |
- |
| 26 |
95801-08035-00 |
BOLT FLANGE 8*35 |
2 |
2 |
¥50 |
- |
| 27 |
96001-06022-00 |
BOLT FLANGE SH 6*22 |
4 |
4 |
¥50 |
- |
|
