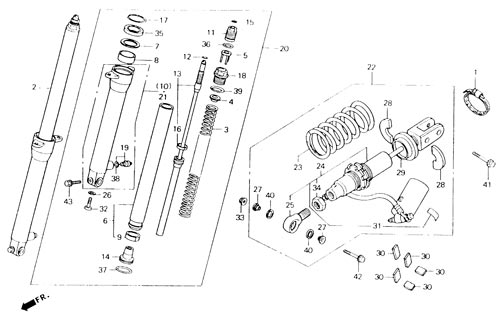

F-5-1 FRONT FORE/REAR CUSHION
|
|
F-5-1 FRONT FORE/REAR CUSHION
|
| NO |
Part No |
Description |
Reqd
No |
PRICE |
NOTES |
| 93 |
94 |
| 1 |
50252-KA4-700 |
BAND,
SUB TANK |
- |
1 |
¥600 |
- |
| 2 |
51400-NF4-901 |
FORK
ASSY., R. FRONT |
- |
1 |
¥28,100 |
- |
| 3 |
51401-NF4-781 |
SPRING,
FRONT FORK (0.65) |
- |
2 |
¥2,180 |
STD |
| |
51403-NF4-881 |
SPRING, H,
FRONT FORK (0.70) |
- |
[2] |
¥2,180 |
HARD |
| |
51404-NF4-881 |
SPRING, S,
FRONT FORK (0.60) |
- |
[2] |
¥2,180 |
SOFT |
| 4 |
51403-MB2-003 |
VALVE, OIL
LOCK |
- |
2 |
¥245 |
- |
| 5 |
51404-NF4-901 |
PLATE
COMP., SPRING ADJUSTER |
- |
2 |
¥2,180 |
- |
| 6 |
51410-NF4-651 |
PIPE
COMP., FRONT FORK |
- |
2 |
¥9,150 |
- |
| 7 |
51412-422-003 |
(
51412-422-405 ) |
- |
- |
- |
It
changed |
| |
51412-422-405 |
RING, BACK
UP |
- |
2 |
¥270 |
- |
| 8 |
51414-469-003 |
BUSH,
GUIDE |
- |
2 |
¥500 |
- |
| 9 |
51415-KL4-951 |
BUSH,
SLIDER |
- |
2 |
¥450 |
- |
| 10 |
51421-NF4-651 |
CASE
COMP., R. BOTTOM |
- |
1 |
¥16,500 |
- |
| 11 |
51422-NF4-901 |
ADJUSTER,
SPRING |
- |
2 |
¥400 |
- |
| 12 |
51423-NF4-901 |
RING,
STOPPER |
- |
2 |
¥50 |
- |
| 13 |
51430-NF4-901 |
DAMPER
COMP., FRONT |
- |
2 |
¥6,240 |
- |
| 14 |
51432-NF4-651 |
PIECE, OIL
LOCK |
- |
2 |
¥760 |
- |
| 15 |
51435-NF4-781 |
O-RING,
11.8*2.4 |
- |
2 |
¥320 |
- |
| 16 |
51437-461-003 |
RING,
PISTON |
- |
2 |
¥330 |
- |
| 17 |
51447-KL4-951 |
RING, OIL
SEAL STOPPER |
- |
2 |
¥125 |
- |
| 18 |
51455-NF4-901 |
BOLT,
FRONT FORK |
- |
2 |
¥580 |
- |
| 19 |
51490-NF4-651 |
BOLT
COMP., PLUG |
- |
2 |
¥1,000 |
- |
| 20 |
51500-NF4-901 |
FORK
ASSY., L. FRONT |
- |
1 |
¥28,100 |
- |
| 21 |
51521-NF4-651 |
CASE COMP.
L. BOTTOM |
- |
1 |
¥16,500 |
- |
| 22 |
52400-NF4-661 |
CUSHION
ASSY., REAR |
- |
1 |
¥45,000 |
JAPANESE
SPEC. |
| |
52400-NF4-911 |
CUSHION
ASSY., REAR |
- |
1 |
¥45,000 |
EXPORT
SPEC. |
| 23 |
52401-NF4-781 |
SPRING,
REAR CUSHION (6.4) |
- |
1 |
¥4,990 |
STD |
| |
52402-NF4-881 |
SPRING, H,
REAR CUSHION (6.8) |
- |
[1] |
¥4,990 |
HARD |
| |
52403-NF4-881 |
SPRING, S,
REAR CUSHION (6.0) |
- |
[1] |
¥4,990 |
SOFT |
| 24 |
52410-NF4-901 |
DAMPER
COMP., REAR |
- |
1 |
¥37,000 |
JAPANESE
SPEC. |
| |
52410-NF4-911 |
DAMPER
COMP., REAR |
- |
1 |
¥37,000 |
EXPORT
SPEC. |
| 25 |
52420-NF4-901 |
JOINT
COMP., UPPER |
- |
1 |
¥3,640 |
- |
| 26 |
52442-KA3-711 |
WASHER.
SPECIAL, 10mm |
- |
2 |
¥90 |
- |
| 27 |
52452-GC4-831 |
BUSH,
DAMPER UP |
- |
2 |
¥580 |
- |
| 28 |
52455-NF4-781 |
STOPPER,
SPRING SEAT |
- |
2 |
¥530 |
- |
| 29 |
52459-NF4-781 |
SEAT,
SPRING |
- |
1 |
¥630 |
- |
| 30 |
64105-NF4-000 |
RUBBER,
COWLING |
- |
5 |
¥110 |
- |
| 31 |
87516-KS7-831 |
LABEL,
REAR DAMPER WARNING |
- |
1 |
¥135 |
- |
| |
87516-KZ1-600 |
LABEL,
REAR DAMPER |
- |
1 |
¥190 |
- |
| 32 |
90126-MR7-003 |
BOLT,
SOCKET, 10*35 |
- |
2 |
¥410 |
- |
| 33 |
90304-GA6-003 |
NUT, AXLE |
- |
1 |
¥125 |
- |
| 34 |
90306-NF5-003 |
NUT, LOCK |
- |
1 |
¥320 |
- |
| 35 |
91255-KBH-003 |
SEAL, OIL,
35*48*11 |
- |
2 |
¥480 |
- |
| 36 |
91256-GE2-003 |
O-RING,
19.8*24 |
- |
2 |
¥135 |
- |
| 37 |
91304-MA6-003 |
(
91304-KM1-003 ) |
- |
- |
- |
It
changed |
| |
91304-KM1-003 |
O-RING,
31.5*2 |
- |
2 |
¥100 |
- |
| 38 |
91311-MR7-003 |
O-RING,
2.4*13.8 |
- |
2 |
¥120 |
- |
| 39 |
91317-381-771 |
O-RING,
27.7*2.4 |
- |
2 |
¥260 |
- |
| 40 |
91351-KB7-003 |
SEAL B,
DUST |
- |
2 |
¥105 |
- |
| 41 |
95801-10040-00 |
BOLT,
FLANGE, 10*40 |
- |
1 |
¥55 |
- |
| 42 |
95801-10050-00 |
BOLT,
FLANGE, 10*50 |
- |
1 |
¥60 |
- |
| 43 |
96300-08040-00 |
BOLT,
FLANGE, DR, 8*40 |
- |
2 |
¥55 |
- |
|
