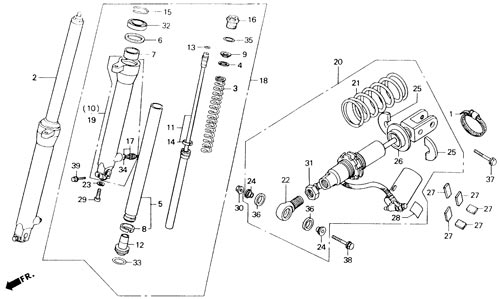

F-5 FRONT FORE/REAR CUSHION
|
|
F-5 FRONT FORE/REAR CUSHION
|
|
NO
|
Part No |
Description |
Reqd
No |
PRICE |
NOTES |
| 93 |
94 |
| 1 |
50252-KA4-700 |
BAND, SUB
TANK |
1 |
- |
¥600 |
- |
| 2 |
51400-NF4-651 |
FORK ASSY., R. FRONT |
1 |
- |
¥28,100 |
- |
| 3 |
51401-NF4-781 |
SPRING, FRONT FORK
(0.65) |
2 |
- |
¥2,180 |
STD |
| |
51403-NF4-881 |
SPRING, H, FRONT FORK
(0.70) |
[2] |
- |
¥2,180 |
HARD |
| |
51404-NF4-881 |
SPRING, S, FRONT FORK
(0.60) |
[2] |
- |
¥2,180 |
SOFT |
| 4 |
51403-MA0-771 |
SEAT, SPRING |
2 |
- |
¥150 |
- |
| 5 |
51410-NF4-651 |
PIPE COMP., FRONT FORK |
2 |
- |
¥9,150 |
- |
| 6 |
51412-422-003 |
(
51412-422-405 ) |
- |
- |
- |
It
changed |
| |
51412-422-405 |
RING, BACK UP |
2 |
- |
¥270 |
- |
| 7 |
51414-469-003 |
BUSH, GUIDE |
2 |
- |
¥500 |
- |
| 8 |
51415-KL4-951 |
BUSH, SLIDER |
2 |
- |
¥450 |
- |
| 9 |
51415-NF4-781 |
SEAT, SPRING |
2 |
- |
¥390 |
- |
| 10 |
51421-NF4-651 |
CASE COMP., R. BOTTOM |
1 |
- |
¥16,500 |
- |
| 11 |
51430-NF4-651 |
DAMPER COMP., FRONT |
2 |
- |
¥6,240 |
- |
| 12 |
51432-NF4-651 |
PIECE, OIL LOCK |
2 |
- |
¥760 |
- |
| 13 |
51435-NF4-781 |
O-RING, 11.8*2.4 |
2 |
- |
¥320 |
- |
| 14 |
51437-461-003 |
RING, PISTON |
2 |
- |
¥330 |
- |
| 15 |
51447-KL4-951 |
RING, OIL SEAL STOPPER |
2 |
- |
¥125 |
- |
| 16 |
51455-NF4-781 |
BOLT, FRONT FORK |
2 |
- |
¥580 |
- |
| 17 |
51490-NF4-651 |
BOLT COMP., PLUG |
2 |
- |
¥1,000 |
- |
| 18 |
51500-NF4-651 |
FORK ASSY., L. FRONT |
1 |
- |
¥28,100 |
- |
| 19 |
51521-NF4-651 |
GASE COMP. L. BOTTOM |
1 |
- |
¥16,500 |
- |
| 20 |
52400-NF4-651 |
CUSHION ASSY., REAR |
1 |
- |
¥45,000 |
JAPANESE SPEC. |
| |
52400-NF4-661 |
CUSHION ASSY., REAR |
1 |
- |
¥45,000 |
EXPORT SPEC. |
| 21 |
52401-NF4-781 |
SPRING, REAR CUSHION
(6.4) |
1 |
- |
¥4,990 |
STD |
| |
52402-NF4-881 |
SPRING, H, REAR
CUSHION (6.8) |
[1] |
- |
¥4,990 |
HARD |
| |
52403-NF4-881 |
SPRING, S, REAR
CUSHION (6.0) |
[1] |
- |
¥4,990 |
SOFT |
| 22 |
52420-NF4-781 |
JOINT COMP., UPPER |
1 |
- |
¥3,640 |
- |
| 23 |
52442-KA3-711 |
WASHER, SPECIAL, 10mm |
2 |
- |
¥90 |
- |
| 24 |
52452-GC4-831 |
BUSH, DAMPER UP |
2 |
- |
¥580 |
- |
| 25 |
52455-NF4-781 |
STOPPER, SPRING SEAT |
2 |
- |
¥530 |
- |
| 26 |
52459-NF4-781 |
SEAT, SPRING |
1 |
- |
¥630 |
- |
| 27 |
64105-NF4-000 |
RUBBER, COWLING |
5 |
- |
¥110 |
- |
| 28 |
87516-KS7-831 |
LABEL, REAR DAMPER
WARNING |
1 |
- |
¥135 |
JAPANESE SPEC. |
| |
87516-KZ1-600 |
LABEL, REAR DAMPER |
1 |
- |
¥190 |
EXPORT SPEC. |
| 29 |
90126-MR7-003 |
BOLT, SOCKET, 10*35 |
2 |
- |
¥410 |
- |
| 30 |
90304-GA6-003 |
NUT, AXLE |
1 |
- |
¥125 |
- |
| 31 |
90306-NF5-003 |
NUT, LOCK |
1 |
- |
¥320 |
- |
| 32 |
91255-KBH-003 |
SEAL, OIL, 35*48*11 |
2 |
- |
¥480 |
- |
| 33 |
91304-MA6-003 |
(
91304-KM1-003 ) |
- |
- |
- |
It
changed |
| |
91304-KM1-003 |
O-RING, 31.5*2 |
2 |
- |
¥100 |
|
| 34 |
91311-MR7-003 |
O-RING, 2.4*13.8 |
2 |
- |
¥120 |
- |
| 35 |
91317-381-771 |
O-RING, 27.7*2.4 |
2 |
- |
¥260 |
- |
| 36 |
91351-KB7-003 |
SEAL B, DUST |
2 |
- |
¥105 |
- |
| 37 |
95801-10040-00 |
BOLT, FLANGE, 10*40 |
1 |
- |
¥55 |
- |
| 38 |
95801-10050-00 |
BOLT, FLANGE, 10*50 |
1 |
- |
¥60 |
- |
| 39 |
96300-08040-00 |
BOLT, FLANGE, DR, 8*40 |
2 |
- |
¥55 |
- |
|
