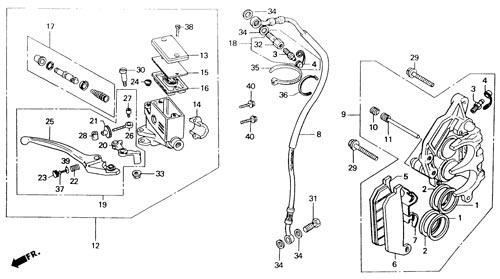

F-4 FRONT CALIPER MASTER CYLINDER
|
|
F-4 FRONT CALIPER MASTER CYLINDER
|
| NO |
Part No |
Description |
Reqd
No |
PRICE |
NOTES |
| 93 |
94 |
| 1 |
43109-MA3-006 |
DUST-SEAL |
2 |
2 |
¥210 |
- |
| |
45109-GE2-006 |
DUST-SEAL |
[2] |
[2] |
¥195 |
FOR 770 CALIPER |
| 2 |
43209-MA3-006 |
SEAL, PISTON |
2 |
2 |
¥215 |
- |
| |
45209-GE2-006 |
SEAL, PISTON |
[2] |
[2] |
¥195 |
FOR 770 CALIPER |
| 3 |
43352-568-003 |
SCREW, BLEEDER |
2 |
2 |
¥205 |
- |
| 4 |
43353-461-771 |
CAP, BLEEDER |
2 |
2 |
¥150 |
- |
| 5 |
45105-NF4-671 |
PAD COMP., A FRONT |
[1] |
[1] |
¥2,700 |
Z22W |
| |
45105-NF4-770 |
PAD COMP., A FRONT |
1 |
1 |
¥2,700 |
TT2501 |
| 6 |
45106-NF4-671 |
PAD COMP., B FRONT |
[1] |
[1] |
¥2,700 |
Z22W |
| |
45106-NF4-770 |
PAD COMP., B FRONT |
1 |
1 |
¥2,700 |
TT2501 |
| 7 |
45108-ML7-922 |
SPRING, PAD |
1 |
1 |
¥275 |
- |
| 8 |
45125-NF4-611 |
HOSE, FRONT BRAKE |
1 |
1 |
¥3,400 |
- |
| |
45125-NF4-771 |
HOSE, FRONT BRAKE |
[1] |
[1] |
¥3,400 |
- |
| 9 |
45200-NF4-651 |
CALIPER ASSY., R.
FRONT BRAKE |
1 |
1 |
¥24,700 |
- |
| |
45200-NF4-770 |
CALIPER ASSY., R.
FRONT BRAKE |
[1] |
[1] |
¥24,700 |
770 CALIPER |
| 10 |
45203-MG3-016 |
PLUG, PIN |
1 |
1 |
¥155 |
- |
| 11 |
45215-ML7-922 |
PIN, HANGER |
1 |
1 |
¥310 |
- |
| 12 |
45500-NF4-770 |
CYLINDER ASSY.,
FRONT BRAKE MASTER |
1 |
1 |
¥14,000 |
- |
| 13 |
45513-MB4-673 |
CAP, MASTER CYLINDER |
1 |
1 |
¥1,050 |
- |
| 14 |
45517-166-006 |
HOLDER, MASTER
CYLINDER |
1 |
1 |
¥550 |
- |
| 15 |
45518-MB4-671 |
PLATE, DIAPHRAGM |
1 |
1 |
¥380 |
- |
| 16 |
45520-MA5-672 |
DIAPHRAGM |
1 |
1 |
¥530 |
- |
| 17 |
45530-MN9-305 |
CYLINDER SET, MASTER |
1 |
1 |
¥1,550 |
- |
| 18 |
45530-NF4-650 |
BOLT ASSY., OIL
BLEEDER |
1 |
1 |
¥1,200 |
- |
| 19 |
53170-MJ4-006 |
LEVER ASSY., R. HANDLE |
1 |
1 |
¥2,950 |
- |
| 20 |
53171-MJ4-006 |
KNOCKER, MASTER
CYLINDER |
1 |
1 |
¥770 |
- |
| 21 |
53172-MJ4-006 |
ADJUSTER, HANDLE
LEVER, R |
1 |
1 |
¥240 |
- |
| 22 |
53173-MJ4-006 |
SPRING, HANDLE LEVER |
1 |
1 |
¥110 |
- |
| 23 |
53174-MJ4-006 |
CAP, HANDLE LEVER |
1 |
1 |
¥125 |
- |
| 24 |
53174-463-770 |
PLUG, HANDLE LEVER
BRACKET |
1 |
1 |
¥90 |
- |
| 25 |
53175-MJ4-006 |
LEVER, HANDLE, R |
1 |
1 |
¥1,550 |
- |
| 26 |
53176-MJ4-016 |
BOLT, ADJUST |
1 |
1 |
¥245 |
- |
| 27 |
53177-KV0-006 |
BOLT, LEVER SOCKET,
5*5 |
1 |
1 |
¥130 |
- |
| 28 |
53179-MJ4-016 |
JOINT, LEVER |
1 |
1 |
¥125 |
- |
| 29 |
90108-NF4-000 |
BOLT, FLANGE, 8*28 |
[2] |
[2] |
¥210 |
WITH WIRE LOCK HOLE |
| |
95801-08028-00 |
BOLT, FLANGE, 8*28 |
2 |
2 |
¥50 |
- |
| 30 |
90114-MA5-671 |
BOLT, HANDLE LEVER |
1 |
1 |
¥280 |
- |
| 31 |
90145-MS9-611 |
(
90145-MS9-612 ) |
- |
- |
- |
It
changed |
| |
90145-MS9-612 |
OIL BOLT, 10*22 |
1 |
1 |
¥300 |
|
| 32 |
90145-NF4-650 |
BOLT, OIL, BLEEDER |
1 |
1 |
¥900 |
- |
| 33 |
90302-NX5-000 |
NUT, HEX., 6 mm |
1 |
1 |
¥100 |
- |
| 34 |
90601-ZE1-000 |
WASHER, PLUG DRAIN 10
mm |
4 |
4 |
¥50 |
- |
| 35 |
90651-NC8-000 |
TY-LAP, 3.6*281 |
1 |
1 |
¥110 |
- |
| 36 |
90652-ND5-000 |
TY-LAP, 2.4*92 |
1 |
1 |
¥60 |
- |
| 37 |
93500-03006-0A |
SCREW, PAN, 3*6 |
1 |
1 |
¥25 |
- |
| 38 |
93600-04012-1G |
(
93600-04012-0G ) |
- |
- |
- |
It
changed |
| |
93600-04012-0G |
SCREW, FLAT, 4*12 |
2 |
2 |
¥25 |
|
| 39 |
94101-03800 |
WASHER, PLAIN, 3 mm |
1 |
1 |
¥25 |
- |
| 40 |
95701-06025-00 |
BOLT, FLANGE, 6*25 |
2 |
2 |
¥40 |
- |
|
