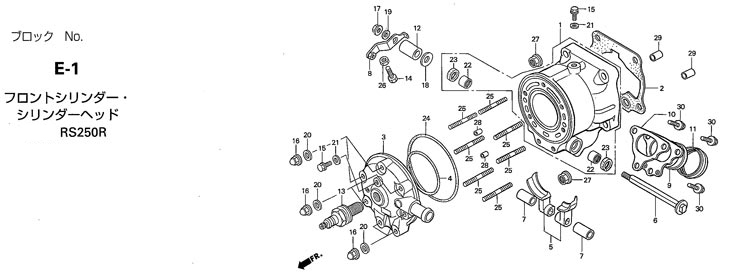

E-1 FRONT CYLINDER/CYLINDER HEED |
|
E-1 FRONT CYLINDER/CYLINDER HEED |
| NO |
PART NO |
DESCRIPTION |
01 |
02 |
PRICE |
REMARKS |
| 1 |
12101-NXA-610 |
CYLINDER COMP |
(1) |
1 |
76,000 |
|
| |
12101-NXA-000 |
CYLINDER COMP |
1 |
- |
76,000 |
|
| 2 |
12194-NXA-003 |
GASKET, CYLINDER (0.4t) |
(1) |
(1) |
250 |
|
| |
12195-NXA-003 |
GASKET, CYLINDER (0.5t) |
1 |
1 |
250 |
|
| |
12196-NXA-003 |
GASKET, CYLINDER (0.6t) |
(1) |
(1) |
250 |
|
| 3 |
12211-NX5-790 |
HEAD, CYLINDER |
1 |
1 |
11,000 |
|
| 4 |
12213-ND5-000 |
O-RING, 61*1.9 |
1 |
1 |
250 |
|
| 5 |
14210-NXA-000 |
SET, VALVE |
1 |
1 |
7,000 |
|
| 6 |
14221-NX5-000 |
SHAFT, EXHAUST VALVE |
1 |
1 |
4,900 |
|
| 7 |
14223-NF5-750 |
COLLAR, 8mm |
2 |
2 |
260 |
|
| 8 |
14420-NX5-750 |
ARM COMP., FRONT VALVE |
1 |
1 |
2,900 |
|
| 9 |
18220-NXA-000 |
JOINT, EXHAUST PIPE#1 |
1 |
1 |
4,000 |
LENGTH:34mm BLACK |
| 10 |
18231-NXA-801 |
GASKET, EXHAUST JOINT |
1 |
1 |
300 |
|
| 11 |
18359-NXA-000 |
SEAL, EXHAUST PIPE |
1 |
1 |
300 |
|
| 12 |
24329-KT8-000 |
COLLAR, GUIDE PLATE DISTANCE |
1 |
1 |
190 |
|
| 13 |
31930-NX5-751 |
SPARK PLUG, R6120-10 |
(1) |
(1) |
4,000 |
|
| 14 |
31940-NX5-751 |
SPARK PLUG, R7282-10.5 |
1 |
1 |
4,000 |
R6120-10.5 |
| |
31950-NX5-751 |
SPARK PLUG, R6120-11 |
(1) |
(1) |
4,000 |
|
| |
90035-NX5-700 |
BOLT, STOPPER |
1 |
1 |
210 |
|
| 15 |
90037-NX5-000 |
BOLT, WATER CHECK 6*10 |
2 |
2 |
260 |
|
| 16 |
90201-415-000 |
NUT, CAP, 6mm |
7 |
7 |
140 |
|
| 17 |
90301-473-003 |
NUT, U, 6mm |
1 |
1 |
220 |
|
| 18 |
90401-NX5-770 |
WASHER, 8mm |
1 |
1 |
125 |
|
| 19 |
90442-035-000 |
WASHER, SEALING, 6mm |
1 |
1 |
115 |
|
| 20 |
90488-425-000 |
WASHER, SEALING, 6mm |
7 |
7 |
135 |
|
| 21 |
90543-273-000 |
PACKING, FRONT FORK DRAIN VALVE |
2 |
2 |
95 |
|
| 22 |
91024-GJ5-003 |
BEARING, NEEDLE, 12*16*10 |
2 |
2 |
320 |
|
| 23 |
91205-PH8-005 |
OIL SEAL, 12*18*4 |
2 |
2 |
350 |
|
| 24 |
91302-HA5-003 |
O-RING, 85.3*2 |
1 |
1 |
610 |
|
| 25 |
92900-06028-0E |
BOLT, STUD, 6*28 |
7 |
7 |
40 |
|
| 26 |
94001-0508-0S |
NUT, 5mm |
1 |
1 |
25 |
|
| 27 |
94050-08000 |
NUT, FLANGE, 8mm |
4 |
4 |
35 |
|
| 28 |
94301-06100 |
DOWEL PIN, 6*10 |
2 |
2 |
60 |
|
| 29 |
94301-10120 |
DOWEL PIN, 10*12 |
2 |
2 |
70 |
|
| 30 |
96001-06014-00 |
BOLT, FLANGE, SH, 6*14 |
3 |
3 |
40 |
|
|
