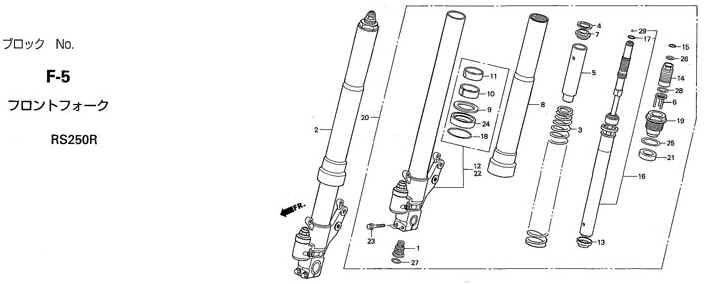

F-5 FRONT FORK

F-5 FRONT FORK

NO	PART NO	DESCRIPTION	01	02	PRICE	REMARKS
1	51126-NXA-003	BOLT, SOCKET	2	2	3,800
2	51400-NXA-003	FORK ASSY., R. FRONT	1	-	67,000
	51400-NXA-611	FORK ASSY., R. FRONT	-	1	67,000
3	51401-NXA-003	SPRING, FRONT FORK	2	2	7,500
	51402-NXA-003	SPRING, FRONT FORK (SOFT)	(2)	(2)	7,500
	51403-NXA-003	SPRING, FRONT FORK (HARD)	(2)	(2)	7,500
4	51403-MA0-771	SEAT, SPRING	2	2	160
5	51403-MCF-003	COLLAR, SPRING	2	-	1,420	L=100
	51403-NXA-003	COLLAR, SPRING	(2)	2	1,500	L=95
6	51404-MT7-003	PLATE COMP., SPRING ADJUST	2	2	900
7	51406-MW4-003	STOPPER, SPRING SEAT	2	2	195
8	51410-NXA-003	TUBE, OUTER	2	2	17,000
9	51412-KA4-711	RING, BUCK UP	2	2	320
10	51414-MAZ-003	BUSH, GUIDE	(2)	2	400
	51414-NXA-003	BUSH, GUIDE	2	-	600
11	51415-MAZ-003	BUSH, SLIDE	(2)	2	630
	51415-NXA-003	BUSH, SLIDE	2	-	1,000
12	51420-NXA-003	PIPE COMP., SLIDE	1	-	28,000
	51420-NXA-611	PIPE COMP., SLIDE	(1)	1	28,000
13	51421-NXA-003	PLATE, CENTERING	2	2	1,000
14	51422-MT7-003	ADJUSTER, SPRING	2	2	3,570
15	51423-MT7-003	RING B, STOPPER	2	2	175
16	51430-NXA-003	DAMPER COMP., FRONT	2	-	24,000
	51430-NXA-611	DAMPER COMP., FRONT	(2)	2	24,000
17	51436-NF5-761	EXPANDER	2	2	530
18	51447-KA4-711	RING, OIL SEAL STOP	2	2	145
19	51454-MCF-003	BOLT, FRONT FORK	2	2	4,310
20	51500-NXA-003	FORK ASSY., L. FRONT	1	-	67,000
	51500-NXA-611	FORK ASSY., L. FRONT	-	1	67,000
21	51517-MCF-003	RUBBER, STOPPER	2	-	265
22	51520-NXA-003	PIPE COMP., L. SLIDE	1	-	28,000
	51520-NXA-611	PIPE COMP., L. SLIDE	(1)	1	28,000
23	90109-MR7-000	BOLT, FLANGE, DR, 8*45	4	4	150
24	91255-KS6-831	SEAL, OIL, 435411	2	-	800
	91255-MCF-003	SEAL, OIL, 435411	(2)	2	800
25	91258-GF4-003	O-RING, 44.7*2.4	2	2	245
26	91311-MR7-003	O-RING, 13.8*2.4	2	2	130
27	91351-MCF-003	O-RING, 17.8*2.4	2	2	130
28	91351-MT7-003	O-RING, 23.7*2.4	2	2	220
29	96211-04000	BALL, STEEL, 4	2	2	10
