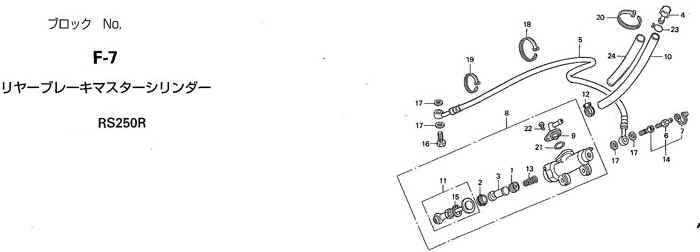

F-7 REAR BRAKE MASTER CYLINDER |
| NO |
PART NO |
DESCRIPTION |
01 |
02 |
PRICE |
REMARKS |
| 1 |
04601-ND5-760 |
CUP, PRIMARY |
1 |
1 |
370 |
|
| 2 |
04602-ND5-760 |
CUP, SECONDARY |
1 |
1 |
370 |
|
| 3 |
04603-NF4-770 |
PISTON, REAR |
1 |
1 |
1,560 |
|
| 4 |
17370-419-700 |
PLUG, BREATHER TUBE |
1 |
1 |
155 |
|
| 5 |
43310-NXA-000 |
HOSE, REAR BRAKE |
1 |
1 |
2,800 |
|
| 6 |
43352-568-003 |
SCREW, BLEEDER |
1 |
1 |
205 |
|
| 7 |
43353-461-771 |
CAP, BLEEDER |
1 |
1 |
160 |
|
| 8 |
43500-NF4-770 |
MASTER CYLINDER ASSY., REAR |
1 |
1 |
10,300 |
|
| 9 |
43503-MB2-006 |
CONNECTOR, MASTER CYLINDER |
1 |
1 |
360 |
|
| 10 |
43503-NF4-000 |
VINYL-TUBE, 9*13*240 |
1 |
1 |
110 |
|
| 11 |
43504-NF4-770 |
ROD ASSY |
1 |
1 |
2,700 |
|
| 12 |
43541-ND5-750 |
CLAMP |
1 |
1 |
250 |
|
| 13 |
45506-ND5-751 |
SPRING |
1 |
1 |
800 |
|
| 14 |
45530-NF4-650 |
BOLT ASSY., OIL BLEEDER |
1 |
1 |
1,200 |
|
| 15 |
46182-500-013 |
CIRCLIP, MASTER CYLINDER |
1 |
1 |
105 |
|
| 16 |
90145-MS9-612 |
OIL BOLT, 10*22 |
1 |
1 |
320 |
|
| 17 |
90601-ZE1-000 |
WASHER, PLUG DRAIN, 10mm |
4 |
4 |
50 |
|
| 18 |
90651-NC8-000 |
TIE-WRAP, 3.6*281 |
1 |
1 |
110 |
|
| 19 |
90652-ND5-000 |
TIE-WRAP, 2.4*92 |
1 |
1 |
60 |
|
| 20 |
91058-MG9-681 |
BAND, SELF LOCK |
1 |
1 |
120 |
|
| 21 |
91212-422-006 |
O-RING, 14.8*2.4 |
1 |
1 |
135 |
|
| 22 |
93893-04012-18 |
SCREW WASHER, 4*12 |
1 |
1 |
35 |
|
| 23 |
95002-02120 |
CLIP, B12, TUBE |
1 |
1 |
35 |
|
| 24 |
95003-45012-10 |
VINYL-TUBE,14*18*120 |
1 |
1 |
450 |
|
|
