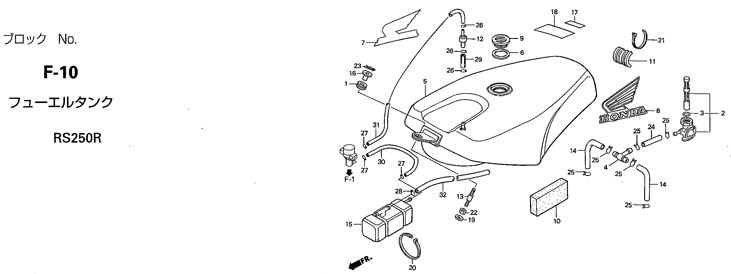

F-10 FUEL TANK

F-10 FUEL TANK
NO PART NO DESCRIPTION 01 02 PRICE REMARKS
1 15604-MG7-000 GROMMET, OIL COLLER 1 1 155 　
2 16950-NF5-003 VALVE ASSY., FUEL 1  1 1,600 　
3 16958-MA1-731 O-RING, 10.6*1.3 1 1 240 　
4 16958-MB0-000 JOINT, FUEL TUBE 1 1 610 　
5 17510-NXA-000 TANK COMP., FUEL 1 1 128,000 　
6 17515-NX5-770 PACKING, FUEL CAP 1 1 1,450 　
7 17516-NF4-610 WING MARK, R. SIDE 1 1 550 　
8 17517-NF4-610 WING MARK, L. SIDE 1 1 550 　
9 17521-NX4-680 CAP, FUEL TANK 1 1 3,850 　
10 17522-NF5-690 SPONGE, BUFFLE 6 6 680 　
11 17528-NC8-000 RUBBER, FUEL TANK MOUNT, REAR 1 1 420 　
12 17625-NX5-771 VALVE COMP, DASHPOT CHECK 1 1 590 BLUE/BROWN
13 17629-NX4-000 PIN, TANK MOUNT 1 1 210 　
14 17702-NX5-790 TUBE, FUEL 2 2 420 　
15 19130-NX5-770 TANK, CATCH 2 2 650 　
16 80115-GS3-000 SIDE COLLAR, RR, FENDER 1 1 120 　
17 87207-NX4-870 MARK, CAUTION 1 1 120 　
18 87208-NC2-000 MARK, CAUTION 1 1 100 　
19 87560-357-671 MARK, CAUTION 1 1 130 　
20 90443-GC8-000 WASHER, SPECIAL 8mm 1 1 110 　
21 90651-NC8-000 TIE-WRAP, 3.6*281 1 1 120 　
22 91058-MG9-681 BAND, SELF LOCK 1 1 30 　
23 94002-08000-0S NUT, HEX, 8mm 1 1 40 　
24 94252-10100 PIN, LOCK, 10mm 1 1 150 　
25 95001-75150-40 TUBE, FUEL, 7.3*150 1 1 35 　
26 95002-02120 CLIP, B12, TUBE 6 6 25 　
27 95002-45000 CLIP, C8, TUBE 3 3 25 　
28 95002-50000 CLIP, C9, TUBE 3 3 30 　
29 95002-80000 CLIP, C12, TUBE 1 1 - No Sale by HRC
30 95003-10003-31 VINYL-TUBE, 5*8*30 1 1 - No Sale by HRC
31 95003-10022-31 VINYL-TUBE, 5*8*220 1 1 - No Sale by HRC
32 95003-10060-31 VINYL-TUBE, 5*8*600 1 1 - No Sale by HRC
33 95003-23060-31 VINYL-TUBE, 8*12*600 1 1 - No Sale by HRC
