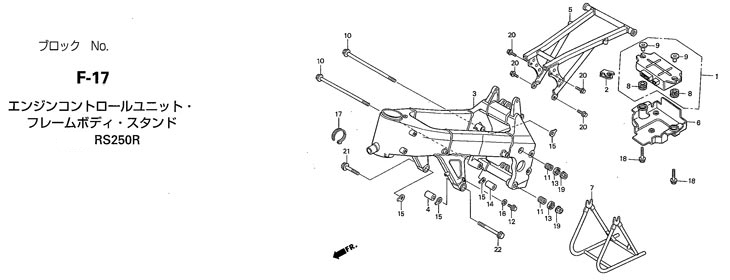

F-17 ENGINE CONTROL
UNIT / FRAME BODY / STAND |
| NO |
PART NO |
DESCRIPTION |
01 |
02 |
PRICE |
REMARKS |
| 1 |
30400-NXA-003 |
UNIT ASSY., ENGINE CONTROL |
1 |
1 |
47,000 |
|
| 2 |
30401-NX5-640 |
PLATE, EARTH |
1 |
1 |
1,200 |
|
| 3 |
50100-NXA-000 |
FRAME BODY COMP |
1 |
1 |
230,000 |
|
| 4 |
50121-KV3-830 |
COLLAR, PIVOT PLATE |
1 |
1 |
560 |
|
| 5 |
50240-NXA-000 |
SEAT RAIL COMP |
1 |
1 |
20,000 |
|
| 6 |
50260-NX5-000 |
COVER, E.C.U |
1 |
1 |
5,700 |
|
| 7 |
50500-NXA-000 |
STAND, MAIN |
1 |
1 |
14,000 |
|
| 8 |
80112-MA6-000 |
CUSHION, TAILLIGHT |
2 |
2 |
145 |
|
| 9 |
90001-438-850 |
COLLAR A |
2 |
2 |
210 |
|
| 10 |
90109-KE1-000 |
BOLT, HEX., 10*215 |
2 |
2 |
350 |
|
| 11 |
90124-NX4-000 |
BOLT, ENGINE MOUNT ADJUST 18*34.5 |
2 |
2 |
700 |
|
| 12 |
90134-ND5-000 |
BOLT, FLANGE, 6*10 |
1 |
1 |
60 |
|
| 13 |
90301-NX4-000 |
NUT, LOCK, M8*1.5 |
2 |
2 |
200 |
|
| 14 |
90430-PV0-000 |
COLLAR, 10.2*22*34.2 |
1 |
1 |
300 |
|
| 15 |
90510-NX4-000 |
SHIM, ENGINE MOUNT, 0.2 |
N |
N |
560 |
|
| |
90511-NX4-000 |
SHIM, ENGINE MOUNT, 0.6 |
N |
N |
560 |
|
| |
90512-NX4-000 |
SHIM, ENGINE MOUNT, 1.0 |
N |
N |
560 |
|
| |
90513-NX4-000 |
SHIM, ENGINE MOUNT, 1.5 |
N |
N |
560 |
|
| 16 |
90543-273-000 |
PACKING, FRONT FORK DRAIN VALVE |
1 |
1 |
95 |
|
| 17 |
90651-NC8-000 |
TIE-WRAP, 3.6*281 |
1 |
1 |
110 |
|
| 18 |
93404-06028-00 |
BOLT WASHER, 6*28 |
2 |
2 |
40 |
|
| 19 |
94050-10000 |
NUT, FLANGE, 10mm |
2 |
2 |
50 |
|
| 20 |
96500-06020-00 |
BOLT, FLANGE, DR, 6*20 |
4 |
4 |
40 |
|
| 21 |
96500-10028-00 |
BOLT, FLANGE, DR, 10*28 |
1 |
1 |
60 |
|
| 22 |
96500-10055-08 |
BOLT, FLANGE, DR, 10*55 |
1 |
1 |
70 |
|
|
