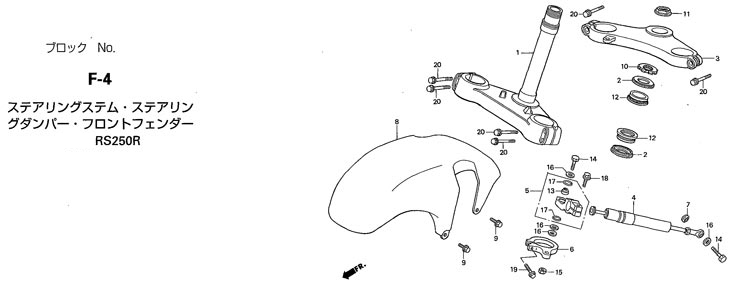

F-4 STEERING STEM / STEERING DAMPER / FRONT FENDER |
| NO |
PART NO |
DESCRIPTION |
01 |
02 |
PRICE |
REMARKS |
| 1 |
53200-NXA-000 |
STEM COMP., STEERING (32.5) |
1 |
1 |
28,000 |
|
| 2 |
53214-MR7-003 |
DUST SEAL, STEERING HEAD |
2 |
2 |
250 |
|
| 3 |
53230-NXA-000 |
BRIDGE, FRONT TOP (32.5) |
1 |
1 |
17,500 |
|
| 4 |
53700-NXA-003 |
DAMPER ASSY., STEERING |
1 |
- |
31,500 |
|
| |
53700-NXA-611 |
DAMPER ASSY., STEERING |
(1) |
1 |
31,500 |
|
| 5 |
53705-NF5-760 |
HOLDER ASSY., STEERING DAMPER |
1 |
1 |
10,000 |
|
| 6 |
53710-NXA-000 |
STAY, STEERING DAMPER |
1 |
1 |
6,800 |
|
| 7 |
53713-NC8-000 |
SPACER, STEERING DAMPER |
1 |
1 |
540 |
|
| 8 |
61100-NXA-000 |
FENDER, FRONT |
1 |
- |
30,000 |
|
| |
61100-NXA-610 |
FENDER, FRONT |
(1) |
1 |
30,000 |
|
| 9 |
90108-GK1-000 |
BOLT, FLANGE, SH, 6*12 |
4 |
4 |
100 |
|
| 10 |
90302-MR7-000 |
THREAD B, STEERING HEAD TOP |
1 |
1 |
730 |
|
| 11 |
90302-NF5-760 |
NUT, STEERING STEM |
1 |
1 |
1,770 |
|
| 12 |
91016-MR7-003 |
BEARING, HEAD PIPE |
2 |
2 |
1,470 |
|
| 13 |
91060-NL0-003 |
BEARING, SPHELICAL, 8mm |
1 |
1 |
3,120 |
|
| 14 |
92201-08035-0A |
BOLT, HEX., 8*35 |
2 |
2 |
40 |
|
| 15 |
94002-08000-0S |
NUT, HEX., 8mm |
1 |
1 |
30 |
|
| 16 |
94102-08000 |
WASHER, PLAIN, 8mm |
4 |
4 |
25 |
|
| 17 |
94601-17000 |
CLIP, PISTON, 17mm |
2 |
2 |
30 |
|
| 18 |
96001-06028-00 |
BOLT, FLANGE, SH, 6*28 |
1 |
1 |
50 |
|
| 19 |
96001-06035-00 |
BOLT, FLANGE, SH, 6*35 |
1 |
1 |
50 |
|
| 20 |
96500-08035-00 |
BOLT, FLANGE, DR, 8*35 |
6 |
6 |
55 |
|
|
