| NO |
PART NO |
DESCRIPTION |
01 |
02 |
PRICE |
REMARKS |

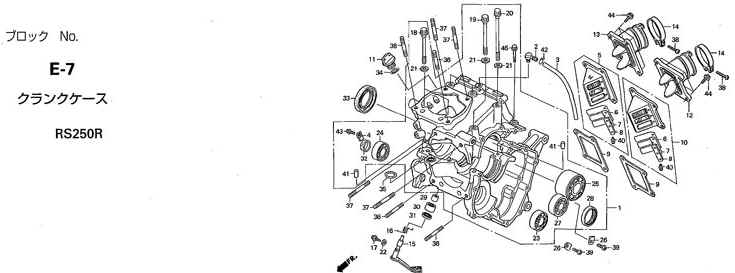

| 1 |
11000-NXA-305 |
CRANKCASE SET |
1 |
- |
182,000 |
|
| |
11000-NXA-306 |
CRANKCASE SET |
(1) |
1 |
182,000 |
|
| 2 |
11106-GM2-300 |
JOINT, BREATHER |
1 |
1 |
240 |
|
| 3 |
11206-KR8-000 |
TUBE, BREATHER |
1 |
1 |
245 |
|
| 4 |
11209-NH3-760 |
STOPPER, SEAL |
1 |
1 |
210 |
|
| 5 |
14100-NXA-003 |
VALVE ASSY., REED REAR |
1 |
1 |
7,000 |
|
| 6 |
14112-NX5-003 |
VALVE ONLY, B REED |
4 |
4 |
400 |
|
| 7 |
14113-NXA-003 |
SUPPORTER, REED VALVE |
4 |
4 |
300 |
|
| 8 |
14121-NX5-003 |
STOPPER, REED VALVE |
4 |
4 |
300 |
|
| 9 |
14132-NXA-003 |
GASKET, REED VALVE |
2 |
2 |
220 |
|
| 10 |
14200-NXA-003 |
VALVE ASSY., REED FRONT |
1 |
1 |
6,700 |
|
| 11 |
15611-NF4-900 |
CAP, OIL FILLER |
1 |
1 |
250 |
|
| 12 |
16210-NXA-000 |
INSULATOR, CARBURETOR FRONT |
1 |
1 |
7,100 |
|
| 13 |
16220-NXA-000 |
INSULATOR, CARBURETOR REAR |
1 |
1 |
7,100 |
|
| 14 |
95018-52250 |
BAND 52, AIR/C CONNECTING TUBE |
2 |
2 |
220 |
|
| 15 |
22810-NXA-000 |
LEVER COMP., CLUTCH LEVER |
1 |
1 |
5,000 |
|
| 16 |
22815-ML0-780 |
SPRING, CLUTCH |
1 |
1 |
135 |
|
| 17 |
90002-KG4-000 |
BOLT, SPECIAL, 6mm |
1 |
1 |
130 |
|
| 18 |
90081-NX5-000 |
BOLT, FLANGE, 9*62.5 |
2 |
2 |
750 |
|
| 19 |
90082-NX5-000 |
BOLT, FLANGE, 9*87 |
1 |
1 |
800 |
|
| 20 |
90083-NX5-000 |
BOLT, FLANGE, 9*114 |
3 |
3 |
900 |
|
| 21 |
90445-MM4-000 |
WASHER, 9mm |
6 |
6 |
120 |
|
| 22 |
90543-273-000 |
PACKING, FRONT FORK DRAIN VALVE |
1 |
1 |
95 |
|
| 23 |
91001-NX5-701 |
BEARING, BALL, 20*47*14 SPECIAL |
1 |
1 |
600 |
|
| 24 |
91005-NX5-771 |
BEARING, BALL, RADIAL, 6005Z SPL |
1 |
1 |
720 |
|
| 25 |
91010-NX5-003 |
BEARING BALL, 5205-M |
1 |
1 |
900 |
|
| 26 |
91012-KA3-710 |
PLATE, COUNTERSHAFT BEARING |
2 |
2 |
140 |
|
| 27 |
91012-NX5-000 |
BEARING, BALL, 6204Z |
1 |
1 |
900 |
|
| 28 |
91022-KA4-740 |
BEARING, SHELL, 33*38*8 |
1 |
1 |
620 |
|
| 29 |
91023-NXA-003 |
BEARING, NEEDLE, 7*11*9 |
1 |
1 |
200 |
|
| 30 |
91101-PZ9-000 |
BEARING, NEEDLE, 12*16*10 |
1 |
1 |
330 |
|
| 31 |
91206-KV3-003 |
OIL SEAL, 12*19*5 |
1 |
1 |
155 |
|
| 32 |
91255-723-671 |
PLUG, SEAL, 22*7 |
1 |
1 |
440 |
|
| 33 |
91261-MB0-003 |
OIL SEAL, 34*50*7 |
1 |
1 |
430 |
|
| 34 |
91304-MJ0-003 |
O-RING |
1 |
1 |
110 |
|
| 35 |
91361-MB0-000 |
O-RING, 19*19 |
1 |
1 |
120 |
|
| 36 |
92900-08032-3E |
BOLT,STUDLL,8*32 |
4 |
4 |
70 |
|
| 37 |
92900-08035-3E |
BOLT,STUDLL,8*35 |
4 |
4 |
70 |
|
| 38 |
93500-04025-0G |
SCREW, PAN, 4*25 |
2 |
2 |
25 |
|
| 39 |
93600-06012-0A |
SCREW, FLAT, 6*12 |
2 |
2 |
30 |
|
| 40 |
93892-03008-08 |
SCREW WASHER, 3*8 |
12 |
12 |
30 |
|
| 41 |
94303-08140 |
DOWEL PIN, 8*14 |
2 |
2 |
60 |
|
| 42 |
95002-02070 |
CLIP B7, TUBE |
1 |
1 |
30 |
|
| 43 |
96001-06012-00 |
BOLT, FLANGE, 6*12 |
1 |
1 |
40 |
|
| 44 |
96001-06022-00 |
BOLT, FLANGE, 6*22 |
8 |
8 |
50 |
|
| 45 |
96001-06025-00 |
BOLT, FLANGE, 6*25 |
3 |
3 |
50 |
|
|
