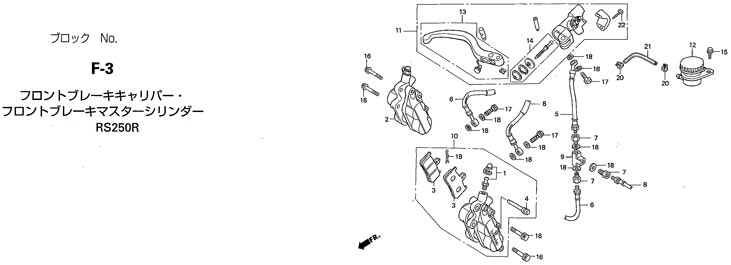

F-3 FRONT BRAKE CALIPER / FRONT BRAKE MASTER CYLINDER |
| NO |
PART NO |
DESCRIPTION |
01 |
02 |
PRICE |
REMARKS |
| 1 |
43352-NX5-004 |
BLEEDER COMP |
2 |
2 |
350 |
|
| 2 |
45100-NX5-770 |
CALIPER ASSY., R. FRONT |
1 |
1 |
26,000 |
|
| 3 |
45105-NX4-770 |
PAD COMP., BRAKE (T9.2, SILVER) |
4 |
4 |
3,230 |
FOR SUS DISK |
| 4 |
45109-NX5-004 |
PIN, HANGER |
2 |
2 |
400 |
|
| 5 |
45125-NX5-681 |
HOSE A, FRONT BRAKE |
1 |
1 |
1,900 |
|
| 6 |
45126-NX5-681 |
HOSE B, R. FRONT BRAKE |
1 |
1 |
3,200 |
|
| 7 |
45127-KZ4-003 |
JOINT, BRAKE HOSE |
3 |
3 |
580 |
|
| 8 |
45127-NX5-681 |
HOSE B, L. FRONT BRAKE |
1 |
1 |
3,400 |
|
| 9 |
45129-NX5-680 |
JOINT, 3WAY |
1 |
1 |
1,500 |
|
| 10 |
45200-NX5-770 |
CALIPER ASSY., L. FRONT |
1 |
1 |
26,000 |
|
| 11 |
45500-NX5-680 |
MASER CYLINDER ASSY., FRONT BRAKE |
1 |
1 |
38,000 |
BREMBO |
| 12 |
45520-NX6-000 |
CUP ASSY., FRONT MASTER CYLINDER |
1 |
1 |
2,800 |
|
| 13 |
53175-NX5-680 |
LEVER SET, FRONT BRAKE L20 |
1 |
1 |
4,000 |
|
| 14 |
53176-NX5-680 |
PUSH ROD SET |
1 |
1 |
5,000 |
|
| 15 |
90108-GK1-000 |
BOLT, FLANGE, SH, 6*12 |
1 |
1 |
100 |
|
| 16 |
90111-NX4-710 |
BOLT, FLANGE, 10*31 |
4 |
4 |
400 |
|
| 17 |
90145-NX4-710 |
OIL BOLT, 10*21.5 |
3 |
3 |
700 |
|
| 18 |
90601-ZE1-000 |
WASHER, PLUG DRAIN, 10mm |
9 |
9 |
50 |
|
| 19 |
94251-05000 |
PIN, LOCK, 5mm |
1 |
1 |
30 |
|
| 20 |
95002-40850-08 |
CLAMP, D8.5 TUBE |
2 |
2 |
50 |
|
| 21 |
95003-11015-60 |
VINYL-TUBE, 5*9/150 |
1 |
1 |
40 |
|
| 22 |
96600-06020-07 |
BOLT, SOCKET 6*20 |
2 |
2 |
40 |
|
|
