| NO |
PART NO |
DESCRIPTION |
01 |
02 |
PRICE |
REMARKS |
| 1 |
17210-NXA-000 |

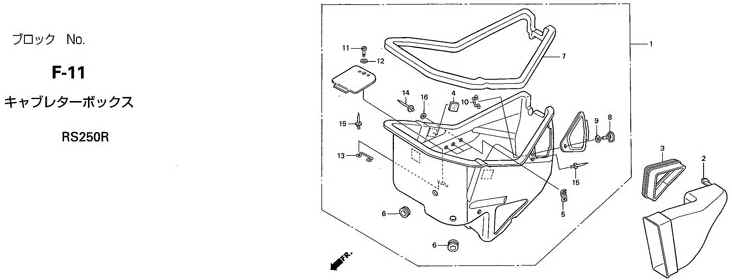

BOX ASSY., CARBURETER |
1 |
- |
72,000 |
|
| |
17210-NXA-610 |
BOX ASSY., CARBURETER |
(1) |
1 |
72,000 |
|
| 2 |
17250-NXA-000 |
JOINT, SIDE DUCT |
1 |
1 |
19,000 |
|
| 3 |
17260-NXA-000 |
TUBE, DUCT CONN |
1 |
1 |
2,000 |
|
| 4 |
17505-GT8-600 |
RUBBER, FUEL TANK |
3 |
3 |
80 |
|
| 5 |
50193-NX6-000 |
STY, COUPLER |
3 |
3 |
360 |
|
| 6 |
55204-GJ2-000 |
GROMMET, OIL TUBE |
2 |
2 |
120 |
|
| 7 |
64234-NX5-770 |
SEAL, GAP |
3 |
4 |
100 |
|
| 8 |
90654-NX5-770 |
STUD, FASTENER 35 |
1 |
1 |
680 |
|
| 9 |
90655-NX5-770 |
GROMMET, FASTENER |
1 |
1 |
100 |
|
| 10 |
90656-NX5-770 |
SPRING, FASTENER 35 |
1 |
1 |
190 |
|
| 11 |
90754-NX5-770 |
STUD, FASTENER 30 |
1 |
1 |
390 |
|
| 12 |
90755-NX5-770 |
GROMMET, FASTENER |
1 |
1 |
30 |
|
| 13 |
90756-NX5-770 |
SPRING, FASTENER 30 |
1 |
1 |
240 |
|
| 14 |
91080-NC8-300 |
BLIND RIVET 3.2*6.4 |
3 |
3 |
10 |
|
| 15 |
91082-NF5-000 |
BLIND RIVET 2.4*5.7 |
N |
N |
20 |
|
| 16 |
94101-03000 |
WASHER, PLAIN 3mm |
3 |
3 |
25 |
|
|
